Basic Information:

Brand: TCL

Model: 65V6B

Size: 65-inch

CPU: A55×4 1.3GHz

GPU: G31x2 800MHz

Operating System: Google TV

RAM: DDR4-2400: 2G Bytes

Storage: eMMC5.0 16G Bytes

UI Style: Google TV UI + TCL TV UI

Launcher Homepages Show: Google Play, Netflix, Youtube, Featured Apps, Source, etc

OSD Languages: English, Vietnamese, Thai, Chinese, Russian, Arabic, Traditional Chinese, Indonesian, France, Spanish (Latin America), Farsi, Mongol, Uzbek, Hebrew, Malay, Portuguese, Burmese, etc.

TV System:

• • ATV: PAL BG, PAL DK
  • DTV: DVB-C/T/T2

AV System: PAL, NTSC

HDMI & HDCP Version: HDMI1.4 & HDMI2.1, HDCP1.4 & HDCP2.2

HDR: HDR10, HLG

Power Supply: AC 110V-240V 50/60Hz

Power Consumption (TV On): 145W

Power Consumption (Standby): ≤0.5W

ECO Energy Efficiency: Yes

Certification:

• • CB, HDMI, Dolby Audio
  • CTS (Google Official Certification), Netflix

Internet Link:

• • 2.4GHz/5GHz dual-band Wi-Fi 802.11 b/g/n 2T2R
  • Ethernet Network (RJ45, 10/100M)

Bluetooth: Yes (Bluetooth 5.0)

LED Indicator:

• • Standby indicator
  • (1-LED, white, below the middle of the bezel)

VESA Hole Pattern: 200 x 200mm

Warranty: 12 Months Warranty

Panel Specification:

Display: 65-inch

Backlight Unit: DLED

Aspect Ratio: 16:9

Panel Active Size (Inch): 64.5

Display Resolution: 3840 x 2160

Brightness (cd/m2): 280nit (typ.)

Contrast Ratio (Open Cell): 6000:1 (typ.)

Response Time (G to G) (ms): 6.5 (typ.)

Viewing Angle (H/V) (Open Cell): 178°/178° (typ.)

Life Time (hrs): 30,000 (typ.)

Color: 1.07G (8 bit + FRC)

Refresh Rate (Hz): 60Hz

Color Volume: ≥68% NTSC

White Uniformity (Brightness): ≥60%

Picture:

Picture Preset: Dynamic, Standard, Smart HDR, Sport, Movie (Game, PC)

Backlight (Brightness): 0~100

Auto Format: On, Off

Screen Mode: 16:9, 4:3, Cinerama, 14:9 zoom, 16:9 zoom, 16:9 zoom up

Overscan: On, Off

Dynamic Brightness: Off, ECO, Brightness+

Micro Dimming: Off, Low, High

Motion Clear: On, Off

Advanced Settings: Contrast, Black Level, Dynamic Contrast, Black Stretch, Gamma, Color Saturation, Tint, Color Temperature, White Balance, Color Space, RGB Mode, Sharpness, Noise Reduction

Input Lag: 15ms @Game Mode

USB Device Media Format

Music: MP3/AAC/WMA/AC3/EAC3/FLAC/OGG

Picture: BMP/JPEG/PNG/GIF/TIF/HEIF codec

Multimedia Video/Audio Decoder: MPEG1/2/4/H.264/H.265/AV1/WMV/VC1/VP8/VP9

Video Format up to: Up to 4K@60Hz

USB Mouse/Key Board Support: Yes

Sound:

Speakers: Integrated Speaker Boxes (Bottom Side)

Audio Power (Watts) Speakers: 2x 10W

Sound Mode: Standard, Dynamic, Movie, Music, Voice, Game, Stadium

Sound Preset Reset: Yes

TV Placement: Desk Top, Wall Mount

Dolby Audio: MS12Y

Button Sound: On, Off

Bass Enhancer: On, Low, Middle, High

Audio Only: Yes

Advanced Settings: Balance, Auto Volume Control, Digital Audio Out

Basic Function:

Google Assistant/Voice Search: Voice input via remote control

Initial Setup: Yes, for user setting in TV first start-up.

Instant Power On: A special standby mode for start-up in shorter time.

Bluetooth: Yes, for external Bluetooth speaker/sound bar.

Channels Edit: Yes, for TV channel renaming.

Input Setting: For input source device name choice and edit.

Input Method: T-IME, Gboard, Virtual Remote Keyboard

System Update: Yes

HDMI CEC: Yes

HDMI ARC / eARC: Yes

Audio Language/MTS/NICAM: Yes

PVR/Time shift: Yes (for DTV programme only)

EPG: Yes (for DTV programme only)

Closed Caption/Subtitle: Yes

E-Sticker: Yes

Parental Control: Yes (for DTV programme only)

Featured Apps:

• • Google Play Store: Popular apps and games.
  • YouTube: Watch countless contents online.
  • Google Play Games: Game platform of Google Play.
  • Google Play Movies & TV: Watch Google Play Movies & TV on Android TV.
  • Chrome Cast: To cast favorite entertainment and apps contents from your phone, tablet or laptop right to TV.
  • Netflix: Watch TV shows and movies online.
  • Media Center: Video/Music play for USB device.

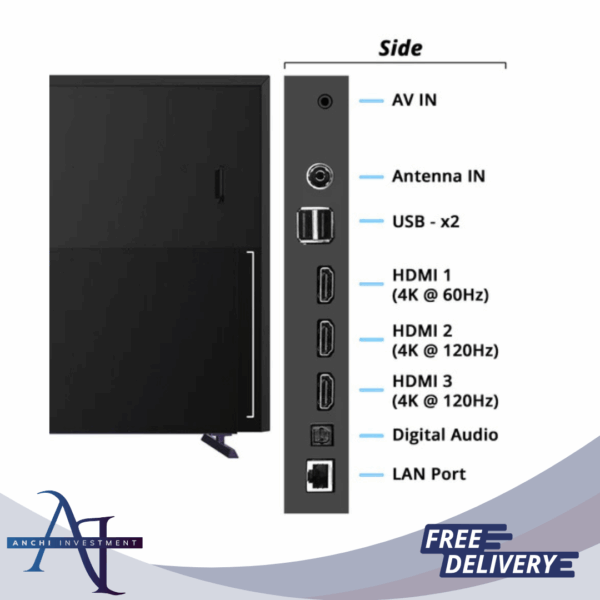

Connectivity (Side):

• • USB 2.0 – x2
  • LAN Port – x1
  • HDMI 1 – x1
  • HDMI 2 (Service) – x1
  • HDMI 3 (eARC/ARC) – x1
  • Antenna/Cable Input – x1
  • AV IN Adapter – x1
  • Headphone Output – x1
  • Digital Audio Output (Optical) – x1

Dimensions & Weight:

Product Dimension with Stand (W x D x H): 1446 x 300 x 878mm (56.9” x 11.8” x 34.6”)

Product Dimension without Stand (W x D x H): 1446 x 73 x 833mm (56.9” x 2.9” x 32.8”)

Carton Dimensions (W x D x H): 1608 x 145 x 1000mm (63.3” x 5.7” x 39.4”)

Net Weight with Stand: 12.6kg

Net Weight without Stand: 12.5kg

Gross Weight with Packaging: 18.5kg
