Basic Information:

Brand: TCL

Model: 43S5400A

Size: 43-inch

CPU: CA55x4 @1.1GHz (DVFS 1.45GHz)

GPU: G31MP2 @550MHz

Operating System: Android TV

RAM: 1G Bytes DDR3-2133

Storage: 8G Bytes eMMC5.1

UI Style: Android TV UI + TCL TV UI

Launcher Homepages Show: Google Play, Netflix, Youtube, Featured Apps, Source, etc

Languages: English, Vietnamese, Thai, Chinese, Russian, Arabic, Traditional Chinese, Indonesian, France, Spanish (Latin America), Farsi, Mongol, Uzbek, Hebrew, Malay, Portuguese, Burmese, etc.

TV System:

• • ATV: ATV: PAL/NTSC/SECAM-DK/BG/I/M
  • DTV: DTV: DVB-C/T/T2

AV System: PAL, NTSC

HDMI & HDCP Version: HDMI1.4b, HDCP1.4 & HDCP2.2

HDR: 2K HDR10 Decoding

Power Supply: AC 100V-240V 50/60Hz (AG: AC 220V-240V 50/60Hz)

Power Consumption (TV On): 75W

Power Consumption (Standby): ≤0.5W

ECO Energy Efficiency: Yes

Certification:

• • CB, HDMI, Dolby Audio
  • CTS (Google Official Certification), Netflix

Internet Link:

• • 2.4GHz Wi-Fi 802.11 b/g/n 2T2R
  • Ethernet Network (RJ45, 10/100M)

Bluetooth: Yes (Bluetooth 5.0)

LED Indicator: Standby indicator (1-LED, white, below the middle of the bezel)

VESA Hole Pattern: 100 x 100mm

Warranty: 12 Months Warranty

Panel Specification:

Display: 43-inch

Backlight Unit: DLED

Aspect Ratio: 16:9

Panel Active Size (Inch): 42.5

Display Resolution: FHD (1920 x 1080)

Brightness (cd/m2): 220 (min.), 240 (typ.)

Contrast Ratio (Open Cell): 5000:1 (typ.)

Response Time (G to G) (ms): 9.5 (typ.)

Viewing Angle (H/V) (Open Cell): 178°/178° (typ.)

Life Time (hrs): 30,000 (typ.)

Color: 16.7 Million (8bit)

Refresh Rate (Hz): 60

Color Volume: ≥64% NTSC (CIE-1931)

White Uniformity (Brightness): ≥60%

Picture:

Picture Preset: Vivid, Low Power, Smart HDR, Sport, Movie, Game, PC

Backlight (Brightness): 0~100

Auto Format: On, Off

Screen Mode: 16:9, 4:3, Cinerama, 14:9 zoom, 16:9 zoom, 16:9 zoom up

Overscan: On, Off

Dynamic Brightness: Off, ECO, Brightness+, Auto

Micro Dimming: 2304 zones

Advanced Settings: Contrast, Black Level, Dynamic Contrast, Black Stretch, Gamma, Color Saturation, Tint, Color Temperature, White Balance, Color Space, RGB Mode, Sharpness, Noise Reduction

Input Lag: 5ms @Game Mode

USB Device Media Format:

Music: MP3, WMA, AC3, AC4

Picture: JPEG, PNG, BMP, GIF

Multimedia Video/Audio Decoder: H.264, H.265, MPEG1/2/4, WMV, VC1, VP8, VP9, AV1

Video Format up to: Up to 1920×1080@60Hz-10bit 4:4:4

USB Mouse/Key Board Support: Yes

Sound:

Speakers: Integrated Speaker Boxes (Bottom Side)

Audio Power Output (THD=7%): 9.5W x2

Sound Mode: Standard, Dynamic, Movie, Music, Voice, Game, Sport

Sound Preset Reset: Yes

TV Placement: Stand, Wall Mount

Dolby Audio: MS12Z

Button Sound: On, Off

Audio Delay: Yes

Audio Only: Yes

Advanced Settings: Balance, Auto Volume Control, Digital Audio Out

Basic Function:

Google Assistant/Voice Search: Voice input via remote control.

Initial Setup: Yes, for user setting in TV first start-up.

Instant Power On: A special standby mode for start-up in shorter time.

Bluetooth: Yes, for external Bluetooth speaker/sound bar.

Channels Edit: Yes, for TV channel renaming.

Input Setting: For input source device name choice and edit.

Input Method: T-IME, Gboard, Virtual Remote Keyboard

System Update: Yes

HDMI CEC: Yes

Audio Language/MTS/NICAM: Yes

EPG: Yes (for DTV programme only)

Close Caption/Subtitle: Yes

E-Sticker: Yes

Parental Control: Yes (for DTV programme only)



Featured Apps:

• • Google Play Store: Popular apps and games.
  • YouTube: Watch countless contents online.
  • Google Play Games: Game platform of Google Play.
  • Google Play Movies & TV: Watch Google Play Movies & TV on Android TV.
  • Chrome Cast: To cast favorite entertainment and apps contents from your phone, tablet or laptop right to TV.
  • Netflix: Watch TV shows and movies online.
  • Media Center: Video/Music play for USB device.

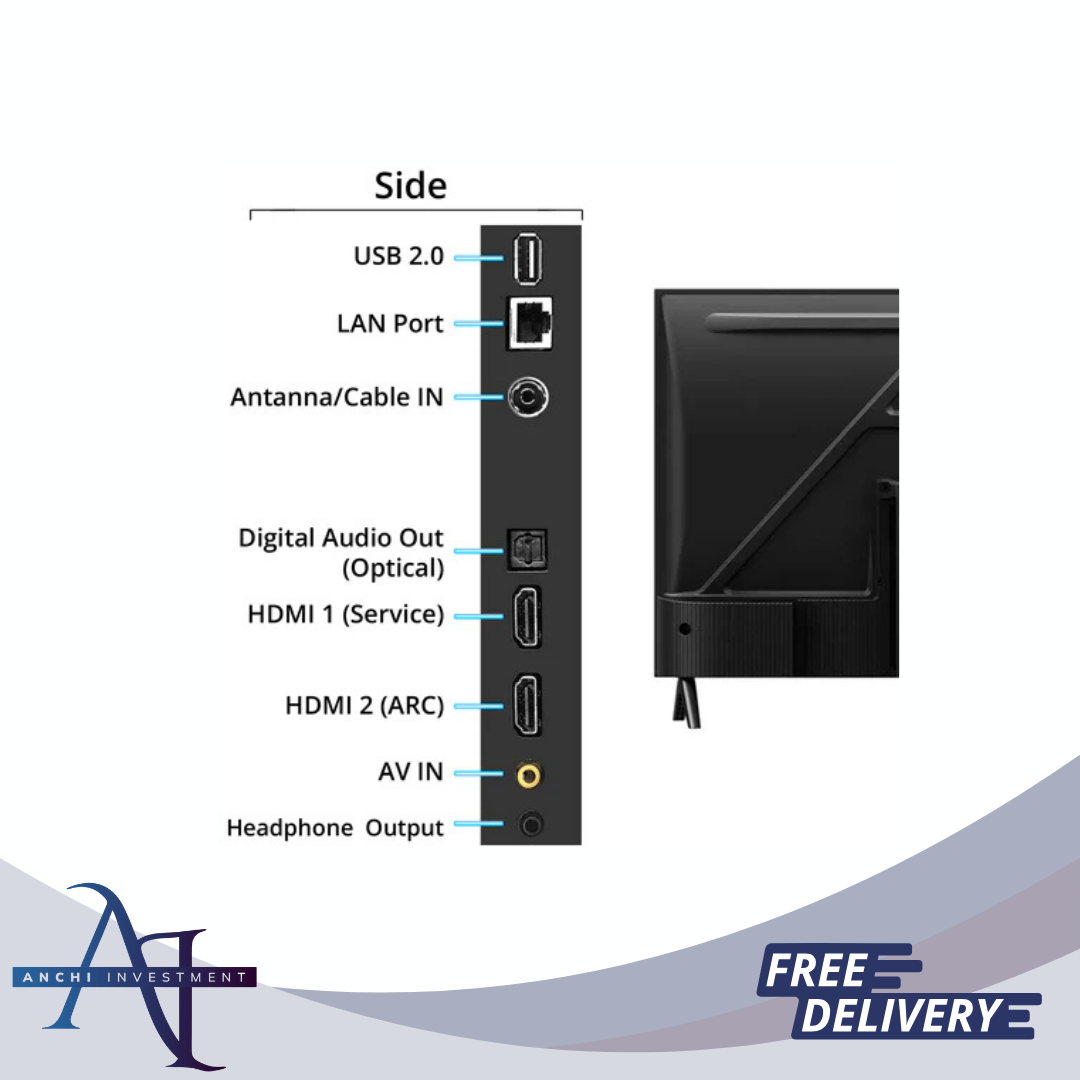

Connectivity:

Side:

• • USB 2.0 – x1
  • LAN – x1
  • Antenna/Cable In – x1
  • Digital Audio Output (Optical) – x1
  • HDMI (Service) – x1
  • HDMI (ARC) – x1
  • AV Input – x1
  • Headphone Output – x1

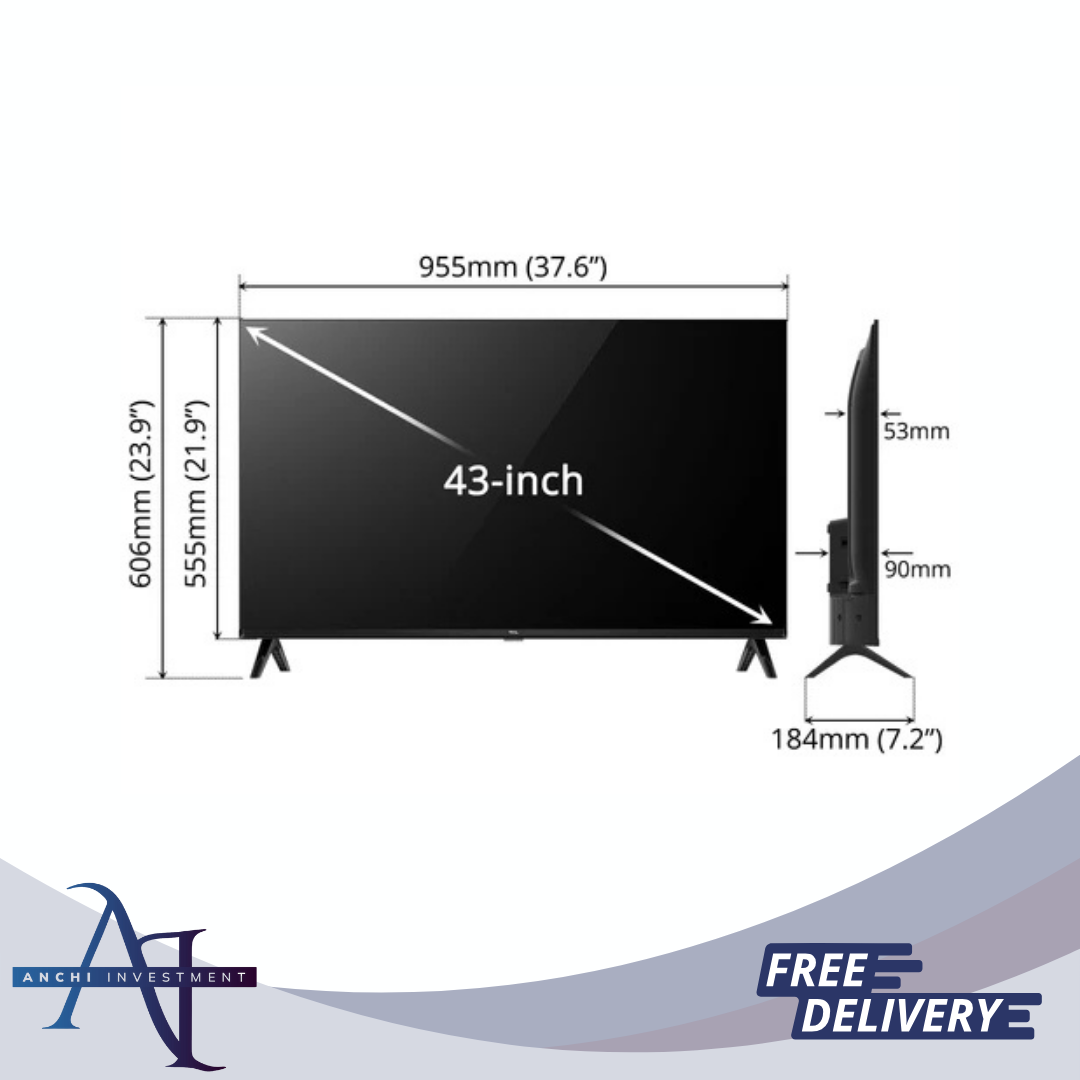

Dimensions & Weight

Product Dimension with Stand (W x D x H): 955 x 184 x 606mm

Product Dimension without Stand (W x D x H): 955 x 90 x 555mm

Carton Dimension (W x D x H): 1075 x 128 x 652mm

Net Weight with Stand: 5.73kg

Net Weight without Stand: 5.67kg

Gross Weight with Packaging: 7.93kg
