Basic Information:

Brand: TCL

Model: 32S4500A

Size: 32-inch

CPU: CA55x4 @1.1GHz (DVFS 1.45GHz)

GPU: G31MP2 @550MHz

Operating System: Android TV

RAM: 1G Bytes DDR3-2133

Storage: 8G Bytes eMMC5.1

UI Style: Android TV UI + TCL TV UI

Launcher Homepages Show: Google Play, Netflix, Youtube, Featured Apps, Source, etc

OSD Languages: English, Vietnamese, Thai, Chinese, Russian, Arabic, Traditional Chinese, Indonesian, France, Spanish(Latin America), Farsi, Mongol, Uzbek, Hebrew, Malay, Portuguese, Burmese, etc

TV System:

• • ATV: PAL/NTSC/SECAM-DK/BG/I/M
  • DTV: DVB-C/T/T2

AV System: PAL, NTSC

HDMI & HDCP Version: HDMI1.4b, HDCP1.4 & HDCP2.2

HDR: 2K HDR10 Decoding

Power Supply: AC 100V-240V 50/60Hz

Power Consumption (TV On): 50W

Power Consumption (Standby): ≤0.5W

ECO Energy Efficiency: Yes

Certification:

• • CB, HDMI, Dolby Audio
  • CTS (Google Official Certification), Netflix

Internet Link:

• • 2.4GHz Wi-Fi 802.11 b/g/n 2T2R
  • Ethernet Network (RJ45, 10/100M)

Bluetooth: No

LED Indicator: Standby indicator (1-LED, white, below the middle of the bezel)

VESA Hole Pattern: 100 x 100mm

Warranty: 12 Months Warranty

Panel Specification:

Display: 32-inch

Backlight Unit: DLED

Aspect Ratio: 16:9

Panel Active Size (Inch): 31.5

Display Resolution: 1366 x 768

Brightness (cd/m2): 200 (min.), 220 (typ.)

Contrast Ratio (Open Cell): 3500:1 (typ.)

Response Time (G to G) (ms): 8 (typ.)

Viewing Angle (H/V) (Open Cell): 178°/178° (typ.)

Life Time (hrs): 30,000 (typ., 8hrs/day)

Color: 16.7 Million (8bit)

Refresh Rate (Hz): 60Hz

Color Volume: ≥58% NTSC (CIE-1931)

White Uniformity (Brightness): ≥57%

Picture:

Picture Preset: Vivid, Low Power, Smart HDR, Sport, Movie, Game, PC

Backlight (Brightness): 0~100

Color Saturation: 0~100

Auto Format: On, Off

Screen Mode: 16:9, 4:3, Cinerama, 14:9 zoom, 16:9 zoom, 16:9 zoom up

Overscan: On, Off

Dynamic Brightness: Off, ECO, Brightness+, Auto

Micro Dimming: 2304 zones

Advanced Settings: Contrast, Black Level, Dynamic Contrast, Black Stretch, Gamma, Color Saturation, Tint, Color Temperature, White Balance, Color Space, RGB Mode, Sharpness, Noise Reduction

Input Lag: 5ms @Game Mode

USB Device Media Format

Music: MP3, WMA, AC3, AC4

Picture: JPEG, PNG, BMP, GIF

Multimedia Video/Audio Decoder: H.264, H.265, MPEG1/2/4, WMV, VC1, VP8, VP9, AV1

Video Format: Up to 1920×1080@60Hz Up to 4K@60Hz

USB Mouse/Key Board Support: Yes

Sound:

Speakers: Integrated Speakers (Bottom Side)

Audio Power Output (THD=7%): 2x 8W

Sound Mode: Standard, Dynamic, Movie, Music, Voice, Game, Sport

Sound Preset Reset: Yes

TV Placement: Stand, Wall Mount

Dolby Audio: MS12Y

Button Sound: On, Off

Audi Delay: Yes

Audio Only: Yes

Advanced Settings: Balance, Auto Volume Control, Digital Audio Out

Basic Function:

Google Assistant/Voice Search: No

Initial Setup: Yes, for user setting in TV first start-up.

Instant Power On: A special standby mode for start-up in shorter time.

Bluetooth: No

Channels Edit: Yes, for TV channel renaming.

Input Setting: For input source device name choice and edit.

Input Method: T-IME, Gboard, Virtual Remote Keyboard

System Update: Yes

HDMI CEC: Yes

Audio Language/MTS/NICAM: Yes

EPG: Yes (for DTV programme only)

Closed Caption/Subtitle: Yes

E-Sticker: Yes

Parental Control: Yes (for DTV programme only)

Featured Apps:

• • Google Play Store: Popular apps and games.
  • YouTube: Watch countless contents online.
  • Google Play Games: Game platform of Google Play.
  • Google Play Movies & TV: Watch Google Play Movies & TV on Android TV.
  • Chrome Cast: To cast favorite entertainment and apps contents from your phone, tablet or laptop right to TV.
  • Netflix: Watch TV shows and movies online.
  • Media Center: Video/Music play for USB device.

Connectivity:

Right Side:

• • USB 2.0 – x1
  • LAN Port – x1
  • Antenna/Cable In – x1
  • Digital Audio Output (Optical) – x1
  • HDMI 1 (Service) – x1
  • HDMI 2 (ARC) – x1
  • AV Input – x1
  • Headphone Output – x1

Dimensions & Weight:

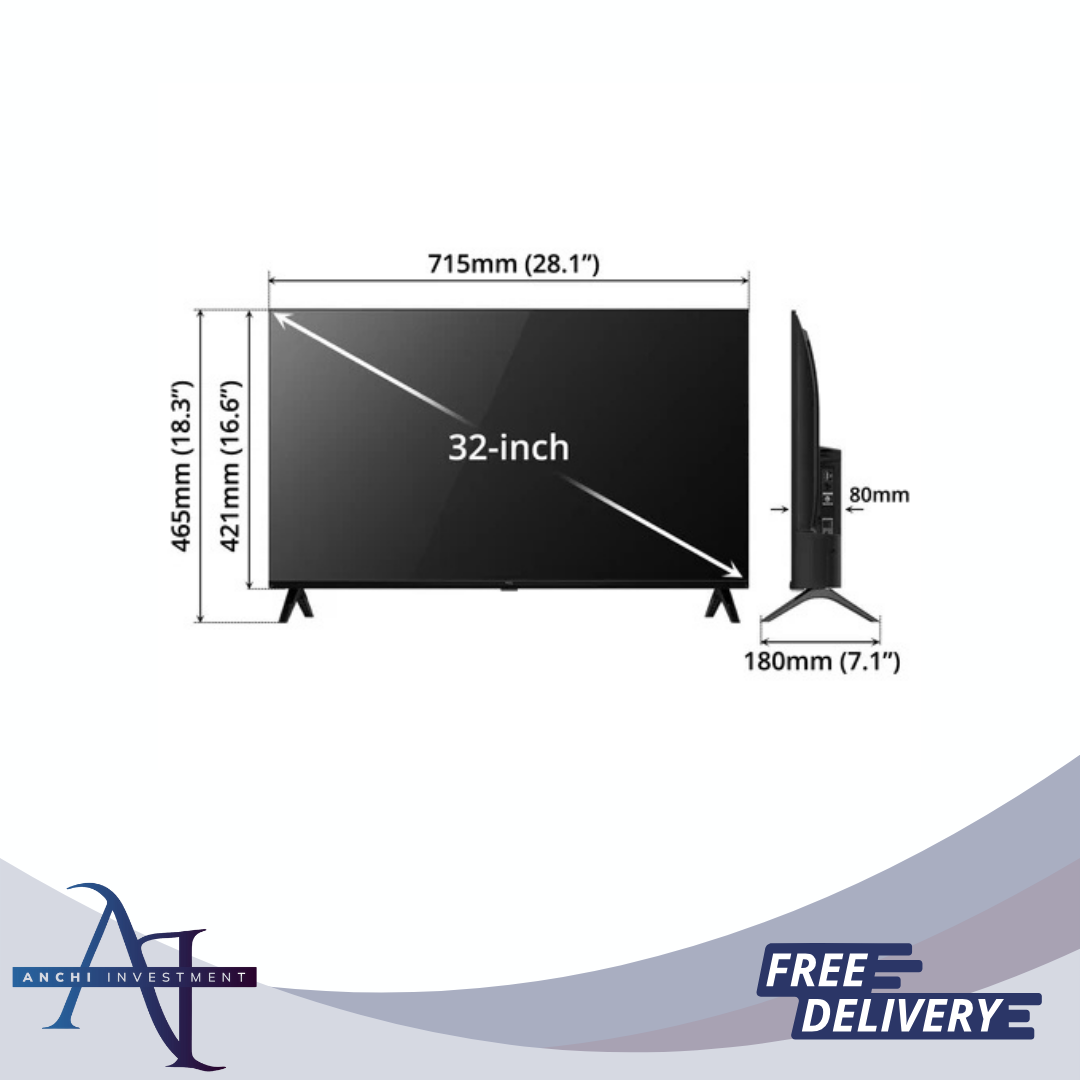

Product Dimension with Stand (W x D x H): 715 x 180 x 465mm (28.1” x 7.1” x 18.3”)

Product Dimension without Stand (W x D x H): 715 x 80 x 421mm (28.1” x 3.1” x 16.6”)

Carton Dimensions (W x D x H): 766 x 105 x 485mm (30.2” x 4.1” x 19.1”)

Net Weight with Stand: 3.44kg

Net Weight without Stand: 3.40kg

Gross Weight with Packaging: 4.7kg
