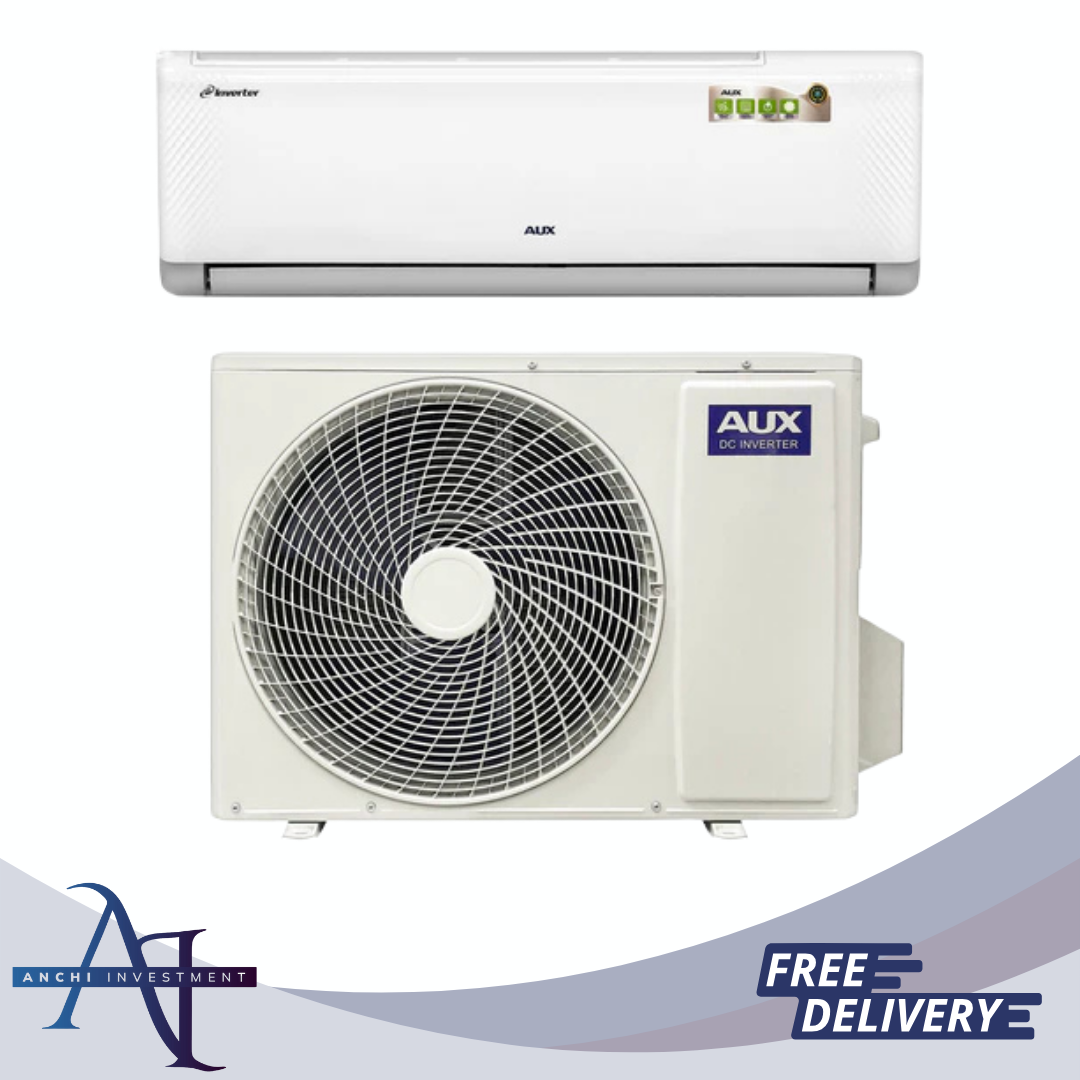

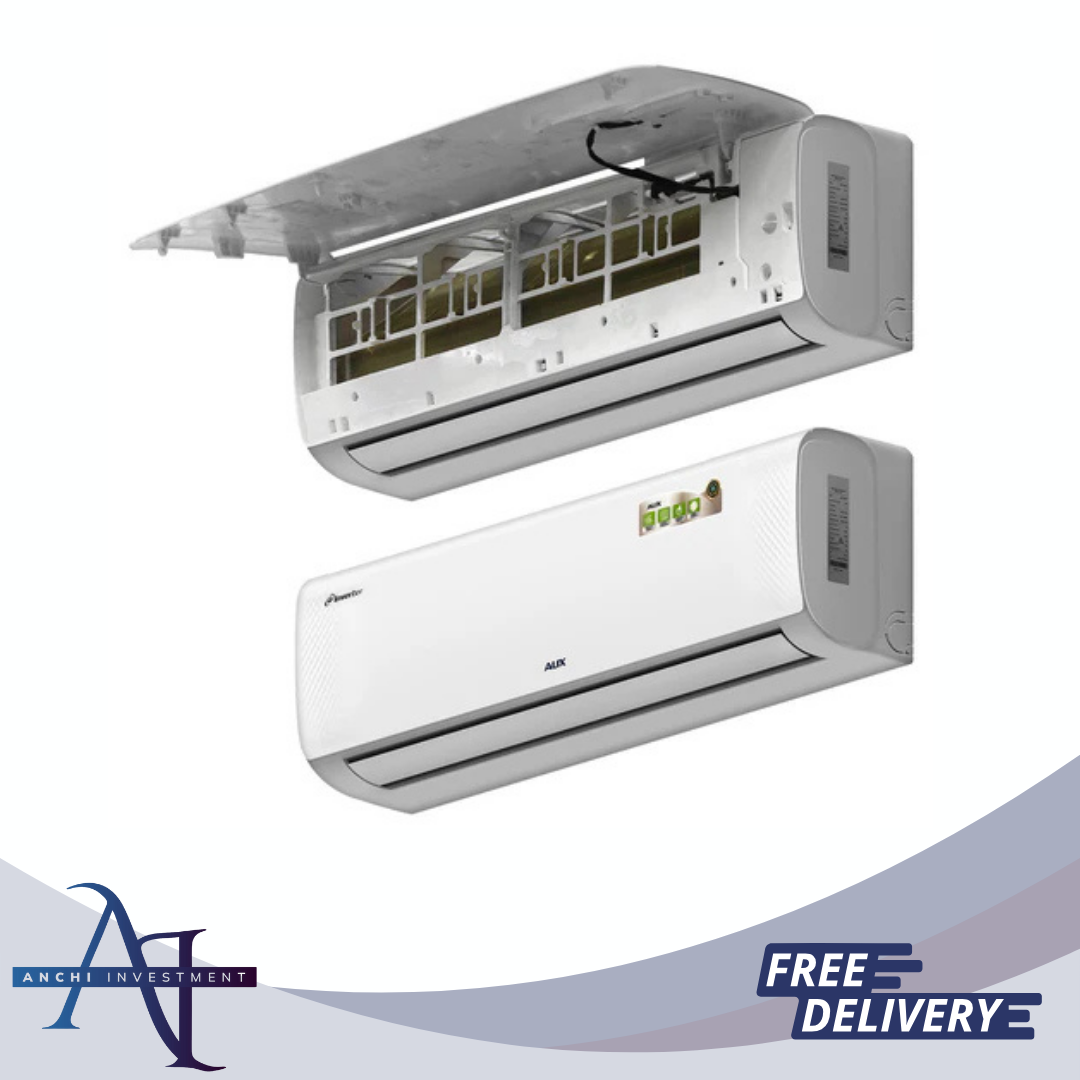

Inverter – Wi-Fi Ready

Brand: Aux

Model: MASDC24QGR1

Capacity: 24000BTU

Color: White

Cooling:

• • Rated Capacity: 7034W
  • Rated Power Consumption: 2200W
  • Rated Running Current: 10.3A (1.0 – 11.5)

Max. Input Power: 2800W

Max. Input Current: 16A

EER Cooling: 3.02 W/W

EU Energy Rating: A+++

Power Supply Source: 220-240V/50Hz

Refrigerant: R32

Refrigerant charged: 1120g

Max. Discharge Pressure: 4.3 Mpa

Max. Suction Pressure: 2.5 Mpa

Air Flow Volume: 1300 m3/h

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

 Indoor Unit:

Indoor Noise Level: 50 dB(A)

Evaporator:

• • Rows: 2
  • Tube pitch: 20.5
  • Tube Material: screws inside
  • Tube Thickness: 0.23mm
  • Tube Quantity: 16
  • Fin Material: hydrophilic foil
  • Fin Type: window
  • Fin Thickness: 0.095mm
  • Fin spacing: 1.4mm

Fan System:

• • Type: Crossflow
  • Material: AS

Connect pipe (length): 3m

Stop Valve:

• • Liquid valve: Dg4
  • Gas valve: Dg13

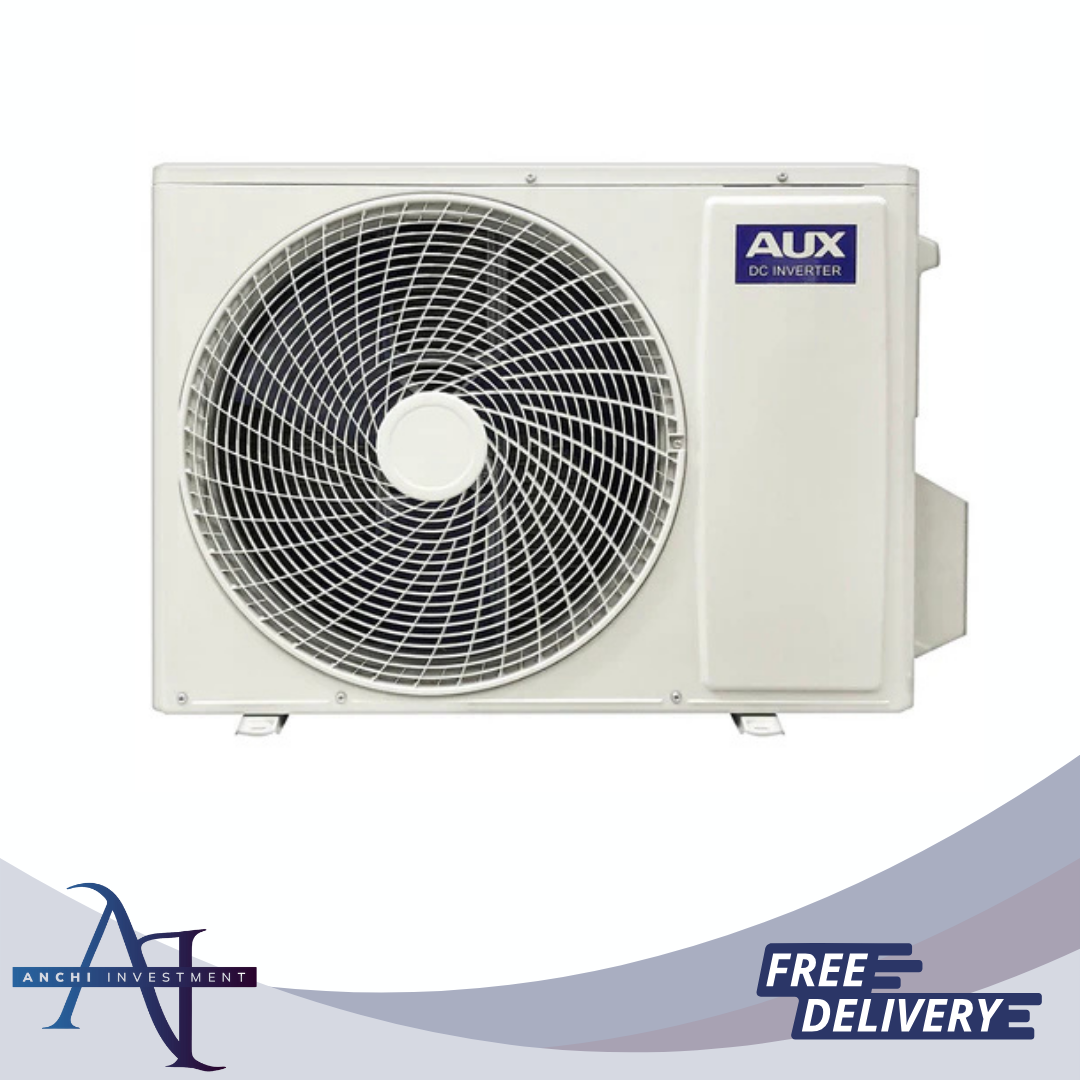

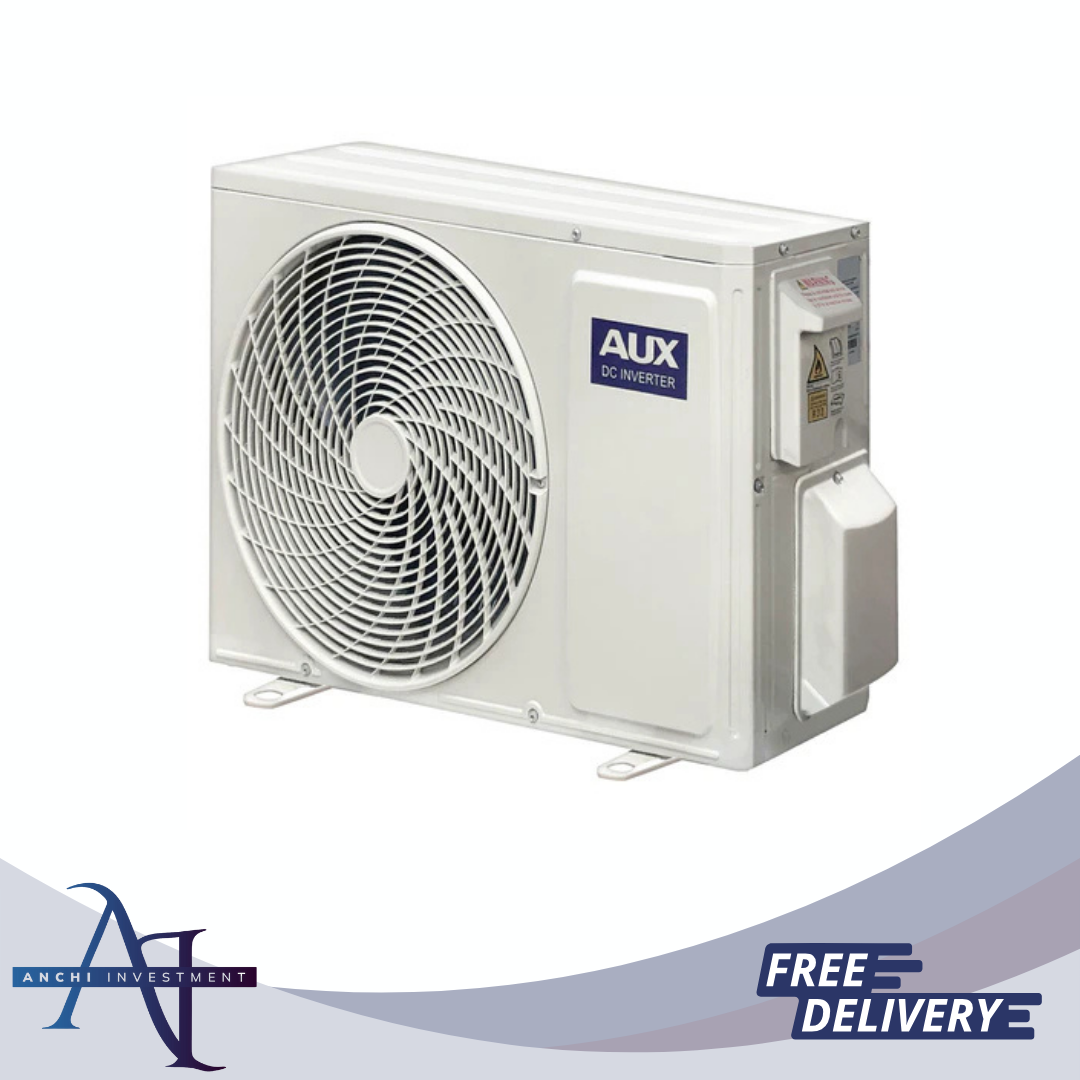

Outdoor Unit:

Outdoor Noise Level: 58 dB(A)

Type: Rotary

Fan:

• • Type: Axis flow
  • Vane Number: –
  • Blade Material: AS

Motor: D-65-10L

Condenser:

• • Row: 2
  • Tube Material: screws inside
  • Tube Quantity: 30
  • Fin Material: hydrophilic foil
  • Fin Type: window
  • Fin spacing: 1.3mm

Dimension & Weight:

Width x Depth x Height

Indoor Unit:

• • Product Dimension: 1089 x 227 x 328mm (42.9” x 8.9” x 12.9”)
  • Packing Dimension: 1155 x 312 x 397mm (45.5” x 12.3” x 15.6”)
  • Net Weight: 12.5kg
  • Gross Weight: –

Outdoor Unit:

• • Product Dimension: 900 x 350 x 700mm (35.4” x 13.8” x 27.6”)
  • Packing Dimension: 1020 x 430 x 770mm (40.2” x 16.9” x 30.3”)
  • Net Weight: 40kg
  • Gross Weight: –

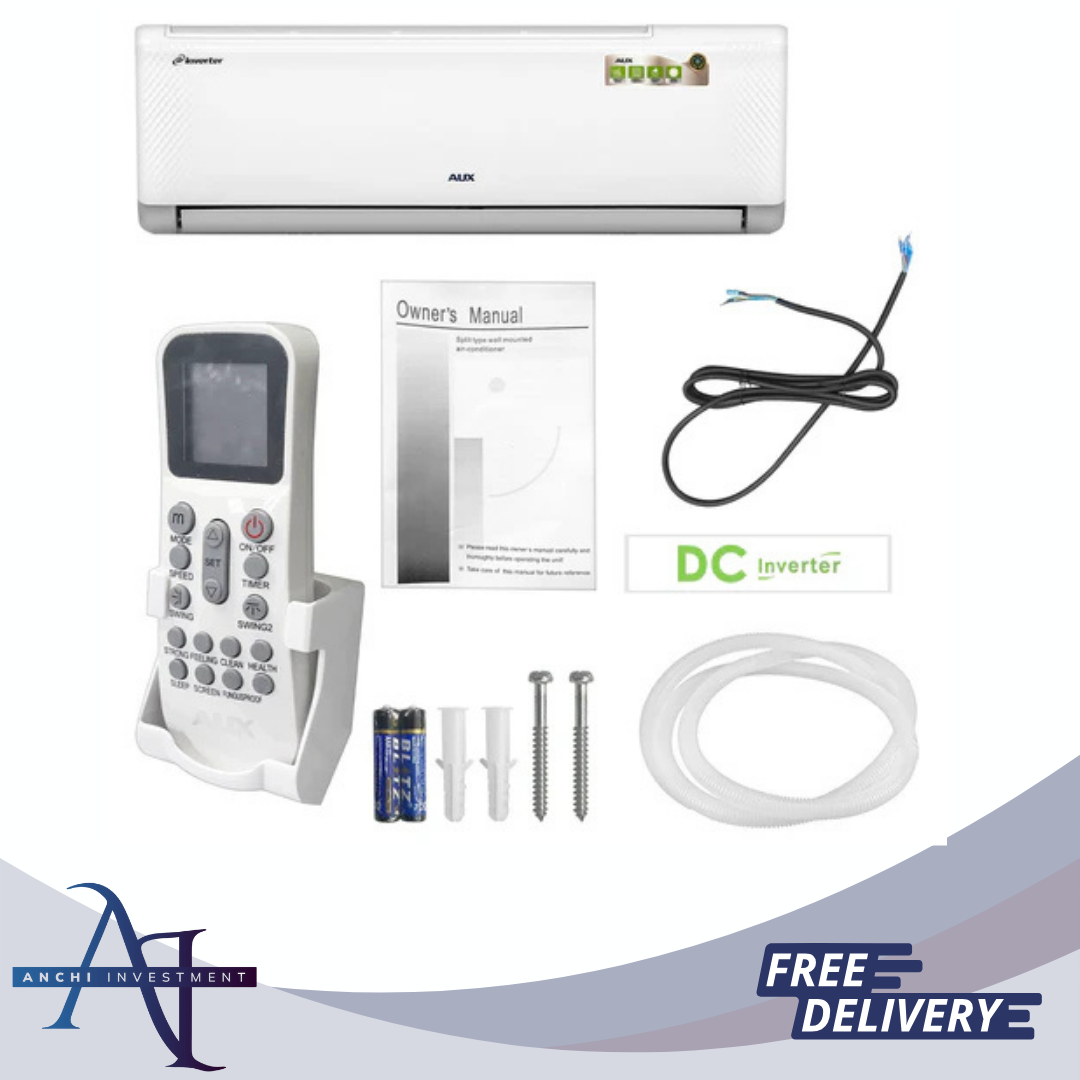

Packing Contents:

24k BTU Indoor Unit – x1

• • Remote Control – x1
  • Remote Holder (Wall-Mount) – x1
  • Screws with Plugs – x2
  • AA Battery – x2
  • Electric Wire – x1
  • Drainage Hose – x1
  • User Manual – x1

24k BTU Outdoor Unit – x1

• • 1/4″ Insulated Copper Tube – x1
  • 5/8” Insulated Copper Tube – x1
  • Clay – x1
  • Wall Hole Cover – x1
  • Wrapping Roll – x1
